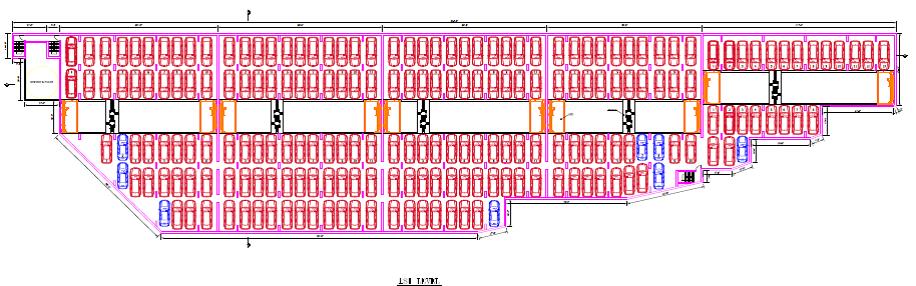

Airport parking level. Ground floor entrance and exit design. Notice 23 entry and exit bays. Total capacity 1,950 vehicles.





Airport parking level. Ground floor entrance and exit design. Notice 23 entry and exit bays. Total capacity 1,950 vehicles.

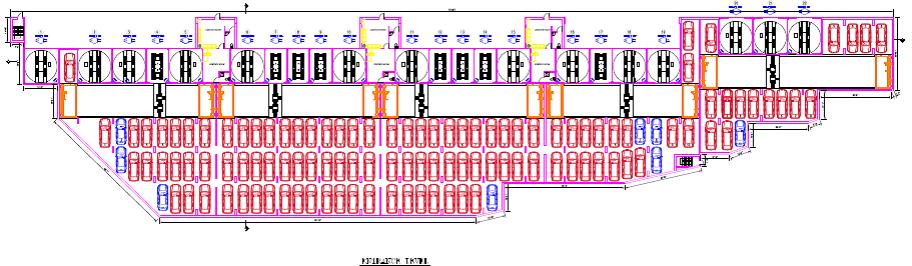

Airport parking application. First drawing is of typical plan view. A long and thin configuration is indicated for highly trafficked sites.   Second drawing is the elevation when viewing the wide side of the structure.

Airport parking application. First drawing is of typical plan view. A long and thin configuration is indicated for highly trafficked sites.


Second drawing is the elevation when viewing the wide side of the structure.

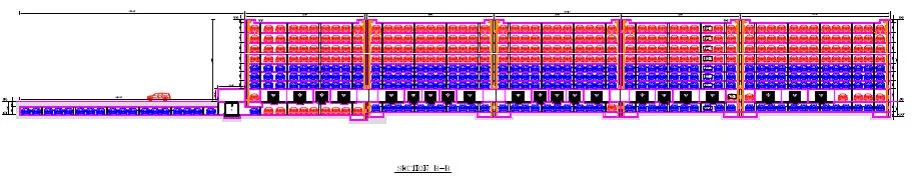

Elevation view of the airport parking facility, view of the narrow side of the structure.
